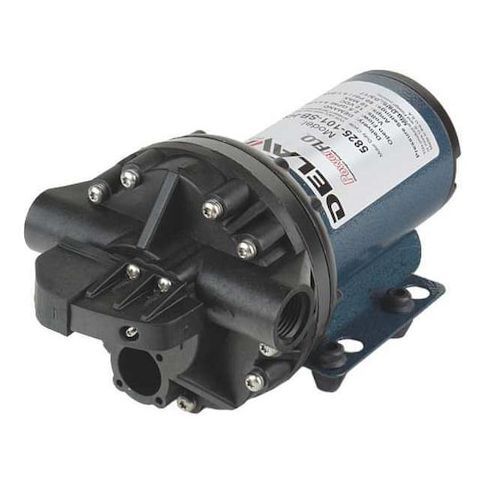

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 2.5 GPM 140 Degrees F MPN:5825A-101-SB-HS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1593958
Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 2.5 GPM 140 Degrees F
The DELAVAN FLUID POWER Diaphragm Pump is a reliable and efficient solution for various applications, including water transfer, chemical injection, and fluid circulation. Its 12VDC operation and self-priming design make it easy to use in remote or hard-to-reach areas. With a maximum flow rate of 2.5 GPM and operating pressure of 60 psi, this pump is suitable for a range of industries, including agriculture, construction, and manufacturing. Its NSF certification ensures compliance with health and safety standards, making it a great choice for applications where contamination risk is a concern.
Top product features:
- Self-priming design allows for easy startup without manual priming
- Maximum operating pressure of 60 psi enables reliable performance in demanding applications
- Santoprene diaphragm material provides durability and resistance to wear and tear in high-temperature environments up to 140°F
Top product applications:
- Sanitary applications in food and beverage processing
- Cooling systems for industrial equipment
- Chemical transfer in laboratories
Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 2 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 2.2 gpm, Current 10 A
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.10
- Package Width: 5.50
- Package Height: 4.80
- Package Weight: 6.95
Product info last updated on February 12, 2026 9:53am UTC
Category: Positive Displacement Pumps
