Diaphragm Pump, Polypropylene, Santoprene®, 12VDC, 2.2 GPM MPN:7822FS-201-SBI
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G1593757

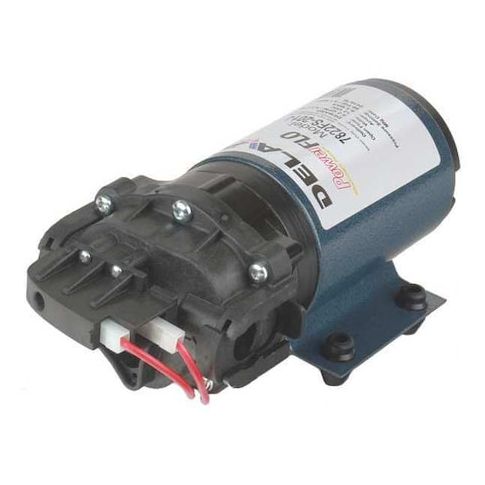

Diaphragm Pump, Polypropylene, Santoprene®, 12VDC, 2.2 GPM
The DELAVAN FLUID POWER Diaphragm Pump is a reliable and efficient solution for various applications. This 12VDC pump features a polypropylene housing and Santoprene diaphragm, making it ideal for use in harsh environments. With a maximum flow rate of 2.2 GPM and self-priming capabilities, it can handle a variety of tasks, including irrigation, water transfer, and chemical dosing. The pump's compact design and quick connect connections make it easy to install and maintain. Its NSF certification ensures compliance with industry standards. Perfect for use in agriculture, construction, and industrial settings, this pump is a versatile and reliable choice.
Top product features:
- Self-priming design allows the pump to draw fluid from a low point without the need for manual priming.
- Quick connect discharge and intake connections enable easy attachment and detachment of hoses and fittings.
- Pressure switch provides automatic shut-off when the maximum operating pressure is reached, preventing damage to the pump.
Top product applications:
- Chemical Transfer
- Fuel Transfer
- Water Treatment
Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 3/4 in, Discharge Connection Type Quick Connect, Flow Rate (Maximum) 2.2 gpm, Housing Material Polypropylene, Intake Connection Size 3/4 in, Intake Connection Type Quick Connect, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 2.1 gpm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 4.30
- Package Height: 3.80
- Package Weight: 5.60
Product info last updated on February 10, 2026 4:51pm UTC
Category: Positive Displacement Pumps
