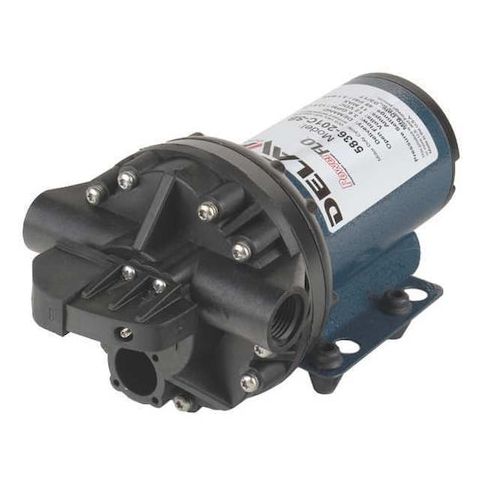

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 3.6 GPM 140 Degrees F MPN:5836-201C-SB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1593230
Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 3.6 GPM 140 Degrees F
The Delavan Fluid Power 12VDC Diaphragm Pump is a reliable and efficient solution for various applications. This self-priming pump is designed for use in a range of industries, including water treatment, chemical processing, and wastewater management. With a maximum flow rate of 3.6 GPM, it can handle high-pressure applications up to 45 psi. The pump's polypropylene and Santoprene construction ensures durability and resistance to corrosion. Its compact size and low power consumption make it ideal for mobile or remote applications. NSF certification ensures compliance with industry standards, making it a trusted choice for a variety of demanding uses.
Top product features:
- Self-priming design allows for easy start-up in low-pressure applications
- Santoprene diaphragm material provides chemical resistance and durability
- Operating pressure up to 45 psi enables efficient transfer of fluids
Top product applications:
- Filtration systems for drinking water and wastewater treatment
- Industrial process control systems for chemical and pharmaceutical manufacturing
- Mobile equipment for pumping fuel, oil, and other hazardous materials
Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 3.6 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 3 gpm, Current 15 A
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 5.40
- Package Height: 4.70
- Package Weight: 6.40
Product info last updated on January 31, 2026 12:07am UTC
Category: Positive Displacement Pumps
