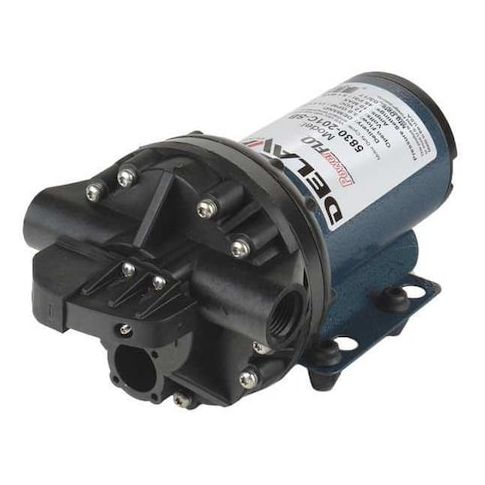

Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 3.0 GPM 140 Degrees F MPN:5830-201C-SB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1593203
Diaphragm Pump, Polypropylene, Santoprene, 12VDC, 3.0 GPM 140 Degrees F
The Delavan Fluid Power 12VDC Diaphragm Pump is a reliable and efficient solution for various applications. Ideal for use in industrial, commercial, and residential settings, this pump is designed to provide self-priming operation and a maximum flow rate of 3.0 GPM. Its polypropylene and Santoprene construction ensures durability and resistance to corrosion, while its 45 psi maximum operating pressure makes it suitable for a range of applications, including water treatment, irrigation, and chemical transfer. The pump's compact size and low power consumption make it an excellent choice for mobile and remote applications.
Top product features:
- Self-priming design allows for easy starting without pre-flushing
- Santoprene diaphragm material provides chemical resistance and durability
- Pressure switch enables automatic shut-off at maximum operating pressure
Top product applications:
- Water Treatment Systems
- Oil Change Machines
- Fuel Dispensing Systems
Diaphragm Pump, Operating Pressure (Maximum) 45 psi, Diaphragm Chamber Design 5, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 3 gpm, Housing Material Polypropylene, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Flow Rate @ 20 psi 2.5 gpm, Current 10 A
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.25
- Package Width: 10.00
- Package Height: 4.75
- Package Weight: 6.60
Product info last updated on January 26, 2026 11:53pm UTC
Category: Positive Displacement Pumps
