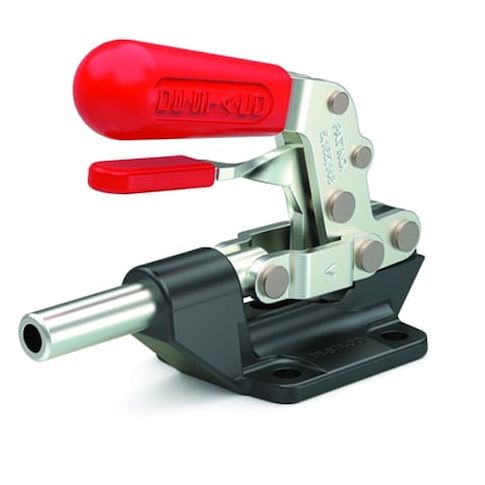

Manual Toggle Clamp, Straight Line, 600lb. MPN:603-MR
Manual Toggle Clamp, Straight Line, 600lb.
The De-Sta-Co Manual Toggle Clamp is a reliable and versatile tool for various industrial applications. Suitable for assembly and test, checking fixtures, tensioning devices, and welding fixtures, this clamp ensures secure holding of workpieces with a maximum capacity of 600 lbf. Its locking handle provides convenient operation and the 34:1 pulling force ratio ensures efficient clamping. Constructed from durable steel, this clamp accommodates extended or retracted positions, making it an ideal solution for a range of tasks. With its compact design and easy handling, the De-Sta-Co Manual Toggle Clamp is an essential tool for any industrial setting.
Top product features:
- Straight Line Clamp design allows for horizontal handle orientation.
- The product has a locking handle for secure positioning.
- The clamp has a 34:1 pulling force ratio.
Top product applications:
- Assembly and Test
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 600 lbf, Plunger Travel 1.25 in, Plunger Height 0.96 in, Plunger Thread M8, Includes Spindle No, Application Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.28 in, Body Material Steel, Exerted Force : Applied Force - Pulling 34:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 2.50
- Package Weight: 0.93
Product info last updated on February 27, 2026 8:14am UTC
Category: Workholding and Machine Tool Accessories
