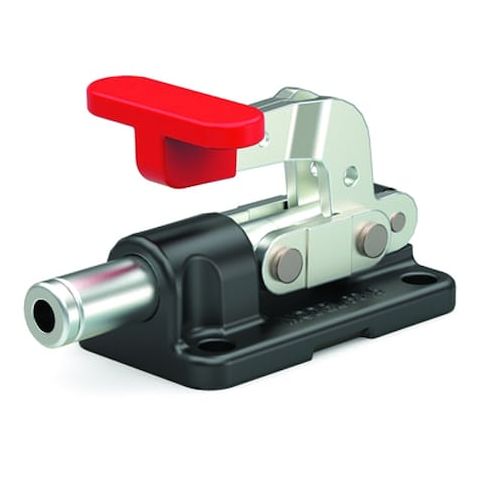

Straight Line Clamp, 560 lb Cap MPN:6015
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5158815
Straight Line Clamp, 560 lb Cap
The De-Sta-Co Straight Line Clamp is a reliable and versatile tool for various applications, including assembly, checking fixtures, and tensioning devices. With a maximum holding capacity of 560 lbf, it securely holds workpieces in place, allowing for precise and efficient operations. Its 35:1 pulling and pushing force ratio ensures consistent and controlled force application. The clamp's compact design and horizontal handle orientation make it easy to use in tight spaces. Its steel body and 1/4-20 thread provide durability and flexibility. Ideal for industries requiring precision and reliability, the Straight Line Clamp is a valuable addition to any workshop or production line.
Top product features:
- Clamp holds workpieces with a maximum holding capacity of 560 lbf.
- Plunger travel is 0.7 in, allowing for precise movement and control.
- The clamp has a 35:1 ratio of exerted force to applied force, providing a high level of clamping pressure with minimal effort.
Top product applications:
- Assembly
- Checking Fixtures
- Tensioning Devices
Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 560 lbf, Plunger Travel 0.7 in, Plunger Height 0.5 in, Plunger Thread 1/4-20, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Accommodates Workpiece Variation No, Arm Length 0.71 in, Body Material Steel, Exerted Force : Applied Force - Pulling 35:1, Exerted Force : Applied Force - Pushing 35:1, Fastener Thread Size 1/4 in
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.33
Product info last updated on January 22, 2026 9:33pm UTC
Category: Workholding and Machine Tool Accessories
