Mini Power Slide, 2In Stroke MPN:MPS-2M-4
Mini Power Slide, 2In Stroke

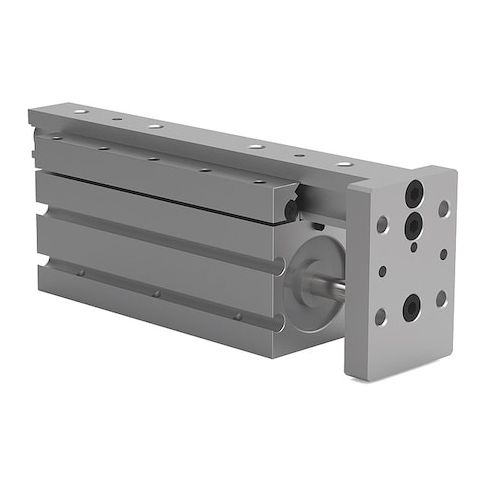

The Mini Power Slide from De-Sta-Co is a compact and reliable linear actuator designed for precision positioning in various applications. With a maximum stroke of 2 inches and a maximum payload of 1.36 kg, it offers high accuracy and repeatability of +/-0.003 in and +/-0.03 in, respectively. Ideal for use in industries such as aerospace, medical, and automotive, this miniature power slide provides fast actuation times of 0.24 seconds and operates within a wide temperature range of -30 to 180 degrees F. Its compact size and high performance make it an excellent choice for applications requiring precise movement and control.
Top product features:
- Maximum stroke of 51 mm
- Cylinder bore diameter of 19.1 mm
- Thrust force of 196 N at 100 psi
Top product applications:
- Assembly line automation
- Automated testing and inspection
- Material handling in small machine shops
Mini Power Slide, Maximum Stroke 51 mm, Cylinder Bore Diameter 19.1 mm, Maximum Payload 1.36 kg, Series MPS, Thrust Force @ 100 psi 196 N, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.24 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
