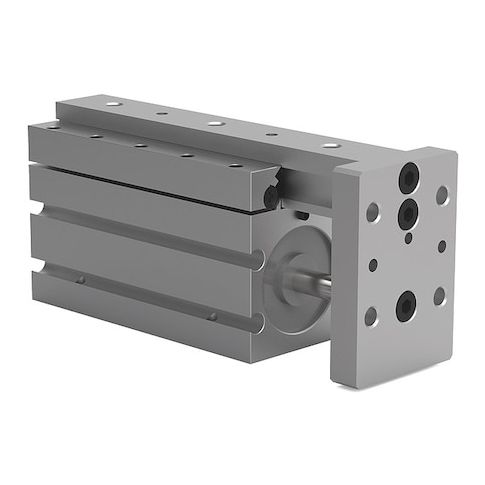

Mini Power Slide, 1-1/2In Stroke MPN:MPS-2M-3
Mini Power Slide, 1-1/2In Stroke
The De-Sta-Co Mini Power Slide is a compact and reliable actuator designed for precise motion control in a variety of applications. With a maximum stroke of 38 mm and a maximum payload of 0.91 kg, it is ideal for use in medical devices, laboratory equipment, and other industries where precision and accuracy are crucial. The Mini Power Slide offers fast actuation times of 0.19 seconds and high accuracy, making it a valuable tool for applications such as dialing, indexing, and positioning. Its compact size and versatility make it a great solution for a wide range of industries and applications.
Top product features:
- Provides a maximum stroke of 38 mm
- Offers a thrust force of 196 N at 100 psi
- Maintains accuracy of +/0.003 in and repeatability of +/0.03 in
Top product applications:
- Automotive assembly lines for precise component placement
- Medical device manufacturing for delicate part handling
- Pharmaceutical packaging lines for precise capsule or tablet placement
Mini Power Slide, Maximum Stroke 38 mm, Cylinder Bore Diameter 19.1 mm, Maximum Payload 0.91 kg, Series MPS, Thrust Force @ 100 psi 196 N, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.19 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
