Mini Power Slide, 1In Stroke MPN:MPS-2M-2

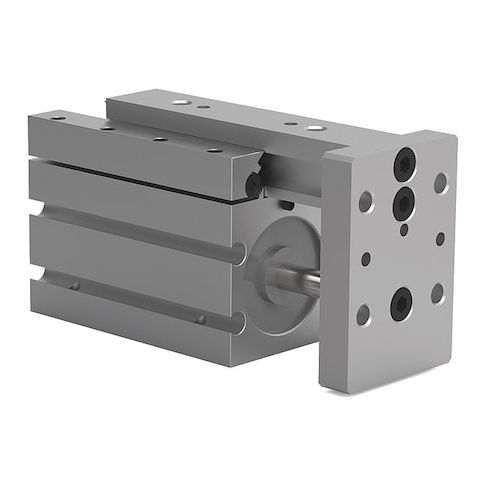

Mini Power Slide, 1In Stroke
The De-Sta-Co Mini Power Slide is a compact and reliable linear motion system ideal for precision applications in various industries. With a maximum stroke of 25 mm and a maximum payload of 0.45 kg, it provides precise positioning and movement control. The slide's high accuracy and repeatability make it suitable for applications such as assembly, testing, and inspection in fields like aerospace, automotive, and medical device manufacturing. Its compact size and low operating pressure requirements also make it an excellent choice for space-constrained environments, ensuring efficient and precise motion control in a wide range of applications.
Top product features:
- Maximum stroke of 25 mm
- Thrust force of 196 N at 100 psi
- Accuracy of +/0.003 in
Top product applications:
- Medical Device Assembly
- Automotive Component Installation
- Pharmaceutical Packaging Equipment
Mini Power Slide, Maximum Stroke 25 mm, Cylinder Bore Diameter 19.1 mm, Maximum Payload 0.45 kg, Series MPS, Thrust Force @ 100 psi 196 N, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.16 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 11:49pm UTC
Category: Hand Tools
