Mini Power Slide, 2In Stroke MPN:MPS-1M-4
Mini Power Slide, 2In Stroke

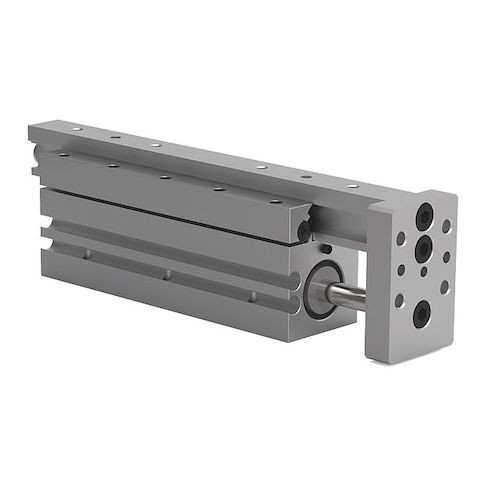

The De-Sta-Co Mini Power Slide is a compact, high-performance linear actuator ideal for precision applications in various industries. With a maximum stroke of 2 inches and a payload capacity of 0.59 kg, it provides reliable and accurate movement in tight spaces. Suitable for use in assembly, testing, and inspection processes, this miniature power slide offers fast actuation times and high repeatability. Its compact design and versatility make it an excellent choice for applications in robotics, medical devices, and aerospace, where precision and reliability are paramount. Its compact size and high performance capabilities make it an ideal solution for a variety of industries.
Top product features:
- Maximum stroke of 51 mm allows for precise movement
- Buna-N seal material provides durability in varying temperatures
- Thrust force of 67 N at 100 psi enables smooth operation
Top product applications:
- Automotive assembly lines for precise and controlled movement of small components
- Medical device manufacturing for precise placement of small parts
- Electronics assembly for accurate and repeatable movement of small components
Mini Power Slide, Maximum Stroke 51 mm, Cylinder Bore Diameter 11.1 mm, Maximum Payload 0.59 kg, Series MPS, Thrust Force @ 100 psi 67 N, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.14 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
