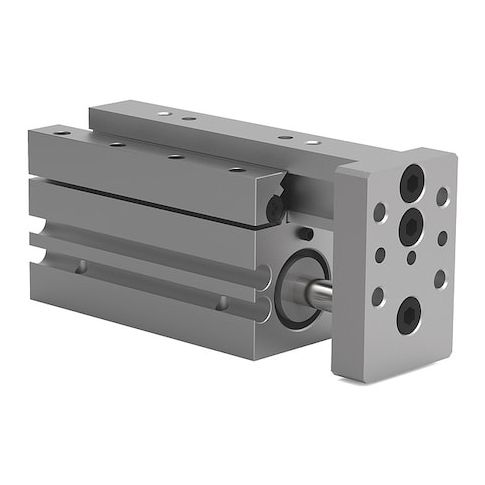

Mini Power Slide 1In Stroke MPN:MPS-1M-2
Mini Power Slide 1In Stroke
The Mini Power Slide 1In Stroke from De-Sta-Co is a compact and reliable pneumatic linear actuator designed for precise and efficient motion control. Suitable for a range of applications including automation, robotics, and medical devices, this actuator provides a maximum stroke of 25 mm and a maximum payload of 0.32 kg. Its high accuracy and repeatability make it ideal for applications requiring precise control, while its fast actuation time of 0.11 seconds enables rapid movement and positioning. With a wide operating temperature range and durable design, this actuator is perfect for use in various industries and environments.
Top product features:
- Maximum stroke of 25 mm
- Thrust force of 67 N at 100 psi
- Accuracy of +/-0.003 in
Top product applications:
- Assembly of small parts and components
- Precision testing and measurement equipment
- Automotive and aerospace component manufacturing
Mini Power Slide, Maximum Stroke 25 mm, Cylinder Bore Diameter 11.1 mm, Maximum Payload 0.32 kg, Series MPS, Thrust Force @ 100 psi 67 N, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.003 in, Repeatability +/-0.03 in, Maximum Actuation Time 0.11 sec, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
