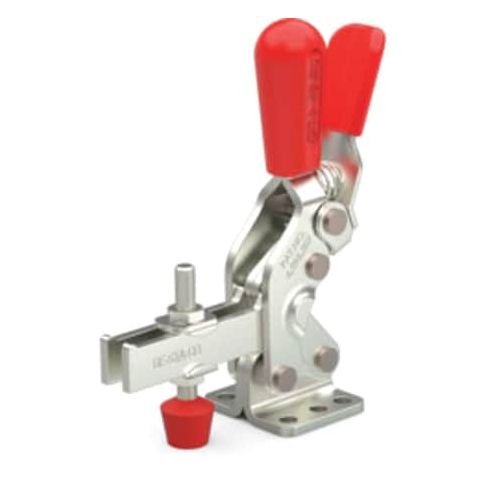

Toggle Clamp, Vert Hold, 600 Lb, H 4.72 MPN:2002-UR
Toggle Clamp, Vert Hold, 600 Lb, H 4.72
The De-Sta-Co Toggle Clamp is a versatile and reliable tool for various applications, including assembly, checking fixtures, clamping, closures, and woodworking. Its vertical handle orientation and 600 lbf holding capacity make it ideal for holding workpieces in place. The clamp's U-bar arm style and neoprene tip provide secure and gentle gripping. With its locking handle and flanged washer, spindle, and mounting holes, this clamp is designed for easy installation and use. Its compact size and lightweight design make it perfect for a variety of tasks, from production line assembly to workshop projects, where precise control is essential.
Top product features:
- Toggle Clamp holds workpieces with a maximum capacity of 600 lbf
- Clamp arm opening angle is 75 degrees
- Clamp arm is a U-Bar style with a neoprene tip
Top product applications:
- Assembly
- Checking Fixtures
- Clamping
Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 600 lbf, Arm Style U-Bar, Tip Material Neoprene, Clamp Arm Opening Angle 75 Degrees , Arm Length 1.93 in, Height Under Arm 0.95 in, Includes Locking Handle Yes, Accommodates Workpiece Variation No, Application Assembly, Checking Fixtures, Clamping, Closures, Woodworking, Body Material Steel, Includes Flanged Washer (215105), Spindle (215208-M), Mounting Holes Center to Center - Long Side 1.06 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 5.50
- Package Height: 1.50
- Package Weight: 0.50
