Parallel Gripper, Three Jaw MPN:RPC-356M

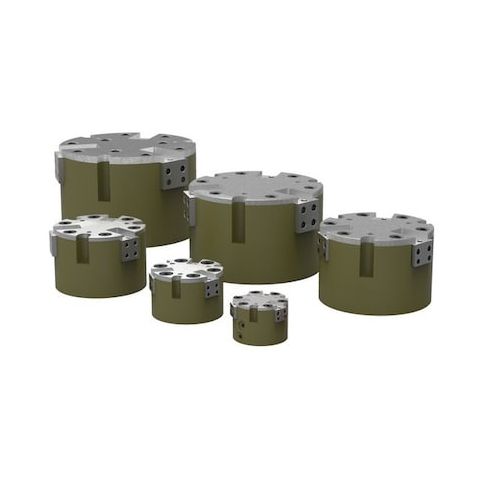

Parallel Gripper, Three Jaw
The De-Sta-Co Parallel Gripper, Three Jaw, Series RPC, is a versatile and reliable pneumatic gripper designed for a wide range of applications. Ideal for use in manufacturing, assembly, and material handling, this gripper offers a high level of precision and control. With a total rated grip force of 6,339 N and a stroke length of 28.4 mm, it can handle a variety of tasks with ease. Its compact design and durable construction make it a great choice for applications where space is limited. Suitable for use in temperatures ranging from -35°C to 80°C, this gripper is a reliable and efficient solution for many industries.
Top product features:
- Three Jaw design provides a secure grip on objects
- Stroke Length of 28.4 mm allows for precise positioning and movement control
- Total Rated Grip Force of 6,339 N ensures a strong holding capacity
Top product applications:
- Automotive manufacturing: The Parallel Gripper can be used to handle and assemble small engine components, such as fuel injectors or timing belts, with precision and accuracy.
- Medical device assembly: The gripper's high accuracy and repeatability make it suitable for handling small medical devices, such as catheters or surgical instruments, during assembly and testing.
- Robotics and automation: The Parallel Gripper can be integrated into robotic systems to handle and assemble small parts, such as electronics or mechanical components, with precision and speed.
Parallel Gripper,Three Jaw, Series RPC, Stroke Length 28.4 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.4 bar, Overall Width 146 mm, Overall Height 101.1 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 4.4 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 6,339 N, IP Rating IP54, Seal Material Buna-N, Displacement 253 cc, Accuracy +/-0.05 mm, Repeatability +/-0.03 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 4:25pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
