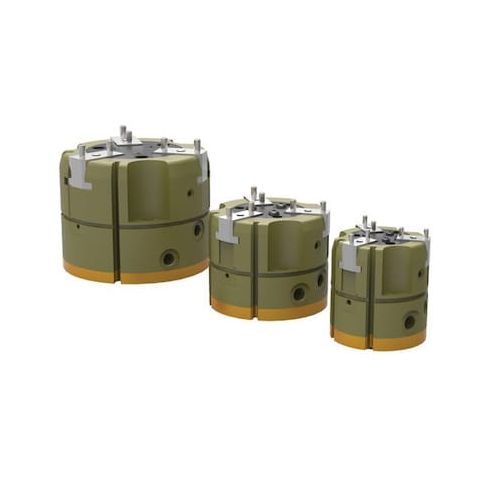

Parallel Gripper, Long Stroke MPN:REP-83-P-C
Parallel Gripper, Long Stroke
The De-Sta-Co Parallel Gripper, Long Stroke is a reliable and efficient solution for various industrial applications. This gripper is designed for use in assembly, testing, and material handling systems, providing a long stroke length of 3/4 inch and a total rated grip force of 938.57 N at 100 psi. Its compact size and low weight make it easy to integrate into existing systems, while its temperature range of -30 to 180°F ensures reliable operation in a variety of environments. Ideal for use in industries such as automotive, aerospace, and consumer goods, this gripper offers precise control and consistent performance.
Top product features:
- Long Stroke capability allows for a greater range of motion and flexibility in gripping applications.
- Maximum Operating Pressure of 100 psi enables the gripper to handle demanding tasks and heavy loads.
- Buna-N seal material provides a durable and reliable seal to ensure consistent performance in a variety of temperatures.
Top product applications:
- Material Handling: The Parallel Gripper, Long Stroke can be used to pick and place small parts in a manufacturing or assembly line environment.
- Assembly and Disassembly: The gripper's long stroke and high grip force make it suitable for assembling and disassembling small components, such as gears or bearings.
- Automated Testing: The gripper's precision and accuracy make it a good fit for automated testing applications, where small parts need to be handled and inspected.
Parallel Gripper,Long Stroke, Series REP, Stroke Length 3/4 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 30 psi, Overall Width 3 1/8 in, Overall Height 3 1/8 in, Inlet Size 1/8 in, Air Inlet Type G, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 1.98 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 938.57 N, IP Rating IP55, Seal Material Buna-N, Displacement 34.9 cc, Accuracy +/-0.002 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on March 26, 2026 5:49pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
