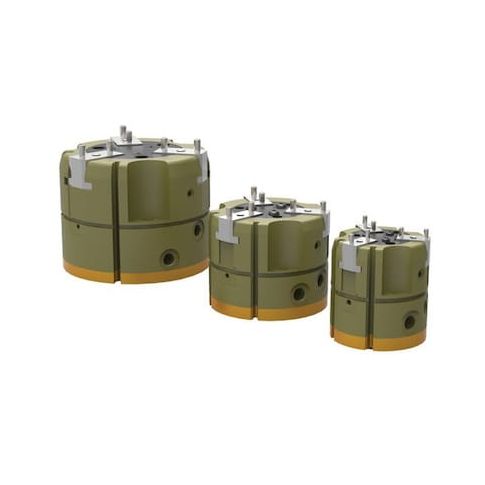

Parallel Gripper, 3 Jaw, No Spring MPN:REP-113-P
Parallel Gripper, 3 Jaw, No Spring
The De-Sta-Co Parallel Gripper, 3 Jaw, No Spring, is a reliable and precise air-powered gripping solution ideal for various industrial applications. Its robust design and wide operating temperature range (-30°F to 180°F) make it suitable for use in diverse environments. With a maximum operating pressure of 100 psi and a total rated grip force of 2,962.51 N, this gripper can securely hold and position materials with accuracy. Its compact size and low weight make it easy to integrate into existing systems, making it a popular choice for manufacturers and production lines in industries such as automotive, aerospace, and more.
Top product features:
- 3 Jaw design for secure gripping of objects
- Stroke Length of 3/4 in for precise control of gripping range
- Maximum Operating Pressure of 100 psi for robust and reliable operation
Top product applications:
- Automotive manufacturing: The Parallel Gripper can be used to pick up and move small metal parts during the assembly process.
- Electronics assembly: The gripper can be used to pick up and place small electronic components, such as resistors or capacitors, onto a circuit board.
- Medical device manufacturing: The gripper can be used to pick up and move small medical devices, such as surgical instruments or implantable devices, during the assembly process.
Parallel Gripper,3 Jaw,No Spring, Series REP, Stroke Length 3/4 in, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 30 psi, Overall Width 4 3/8 in, Overall Height 3 7/8 in, Inlet Size 1/8 in, Air Inlet Type G, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Weight 5.4 lb, System of Measurement Inch, Total Rated Grip Force @ 100 psi 2,962.51 N, IP Rating IP55, Seal Material Buna-N, Displacement 87.01 cc, Accuracy +/-0.002 in
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 1:53am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
