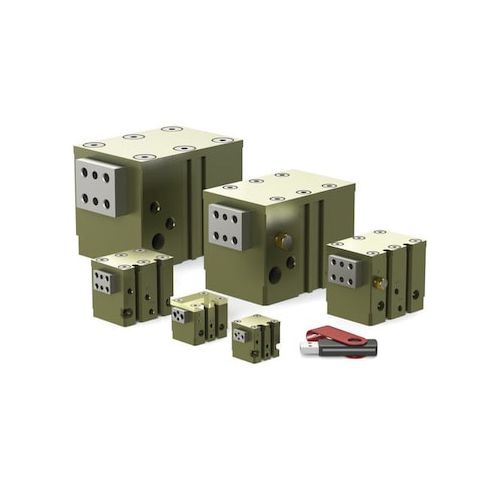

Parallel Gripper, Direct Connect MPN:DPDS-250M-075
Parallel Gripper, Direct Connect
The Parallel Gripper, Direct Connect from De-Sta-Co is a reliable and efficient component for various industrial applications. Ideal for use in assembly, testing, and inspection processes, this gripper provides a total rated grip force of 1,779 N at 100 psi, ensuring secure handling of parts. Its compact design, with dimensions of 79.3 mm in length and 114 mm in width, makes it suitable for use in tight spaces. The gripper operates within a wide temperature range of -35°C to 80°C and can withstand pressures up to 7 bar. Suitable for applications in manufacturing, automotive, and aerospace industries.
Top product features:
- Stroke Length 19.1 mm
- Maximum Operating Pressure 7 bar
- Seal Material Buna-N
Top product applications:
- Assembly and Fixturing of Small Parts
- Automotive Component Manufacturing
- Electronics Component Handling
Parallel Gripper,Direct Connect, Series DPDS, Stroke Length 19.1 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 79.3 mm, Overall Width 114 mm, Overall Height 87.9 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 2.76 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 1,779 N, IP Rating IP54, Seal Material Buna-N, Displacement 36 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 6, 2026 1:58pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
