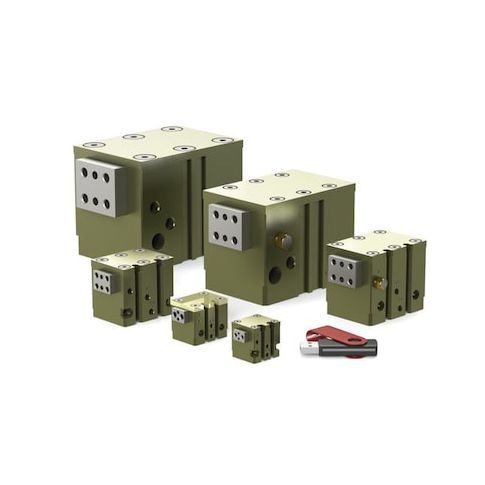

Parallel Gripper, Direct Connect MPN:DPDS-175M-050
Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect is a reliable and efficient component for various industrial applications. Its compact design and low operating pressure requirements make it suitable for use in a range of industries, including manufacturing, packaging, and automation. With a maximum operating pressure of 7 bar and a total rated grip force of 890 N, this gripper provides a strong and consistent hold on objects. Its temperature range of -35°C to 80°C and IP54 rating ensure durability and resistance to environmental factors. Ideal for use in assembly, sorting, and handling applications, this gripper offers a reliable and efficient solution for a variety of tasks.
Top product features:
- Parallel Gripper operation at pressures up to 7 bar
- Seal material is Buna-N
- Total Rated Grip Force is 890 N at 100 psi
Top product applications:
- Automotive assembly lines for gripping and holding parts during assembly or inspection
- Material handling systems for gripping and moving packages or parts in warehouses or distribution centers
- Medical device manufacturing for gripping and holding delicate components during assembly or testing
Parallel Gripper,Direct Connect, Series DPDS, Stroke Length 12.7 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 64.8 mm, Overall Width 102 mm, Overall Height 75.3 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.68 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 890 N, IP Rating IP54, Seal Material Buna-N, Displacement 11.7 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 63 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 3, 2026 8:30pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
