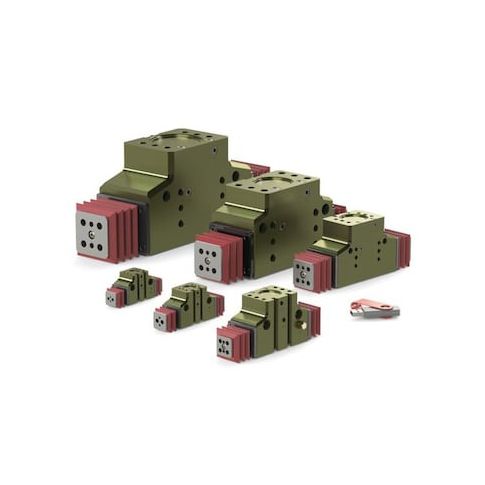

Parallel Gripper, Direct Connect MPN:DPDL-175M-150
Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect is a reliable and efficient pneumatic gripper designed for a wide range of industrial applications. Its compact size and robust design make it ideal for use in automated assembly, material handling, and packaging systems. With a maximum operating pressure of 7 bar and a total rated grip force of 890 N, this gripper can handle heavy loads with ease. Its temperature range of -35°C to 80°C and IP66 rating ensure reliable operation in harsh environments. Perfect for applications such as robotic assembly, palletizing, and machine loading, this gripper provides consistent and repeatable performance.
Top product features:
- Parallel Gripper design allows for direct connection to pneumatic systems
- The product operates within a temperature range of -35 to 80 degrees Celsius
- The gripper features a total rated grip force of 890 N at 100 psi
Top product applications:
- Automotive parts assembly
- Textile manufacturing
- Food processing
Parallel Gripper,Direct Connect, Series DPDL, Stroke Length 38.1 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 64.8 mm, Overall Width 145 mm, Overall Height 93.9 mm, Inlet Size 1/8 in, Air Inlet Type NPT, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.68 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 890 N, IP Rating IP66, Seal Material Buna-N, Displacement 35.2 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 4:20am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
