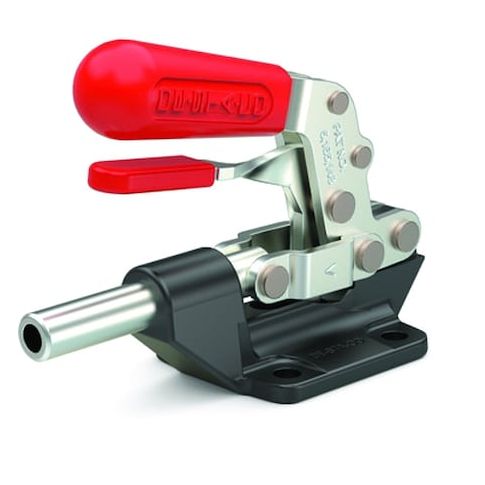

Toggle Clamp, Flanged Base, w/Lever, 600 MPN:603-R
Toggle Clamp, Flanged Base, w/Lever, 600
The De-Sta-Co Toggle Clamp is a versatile and reliable tool for various assembly and test applications. Its flanged base and horizontal handle orientation provide a secure and ergonomic grip, while its locking handle ensures consistent and repeatable results. With a maximum holding capacity of 600 lbf, this clamp is ideal for use in welding fixtures, tensioning devices, and checking fixtures. Its compact design and steel construction make it a valuable addition to any production line, allowing for efficient and precise assembly and testing processes.
Top product features:
- Flanged base design for secure mounting
- Locking handle for precise control and retention
- 34:1 pulling force ratio for efficient clamping operation
Top product applications:
- Assembly and Test
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 600 lbf, Plunger Travel 1.25 in, Plunger Height 0.97 in, Plunger Thread 5/16-18, Includes Spindle No, Application Assembly and Test, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.28 in, Body Material Steel, Exerted Force : Applied Force - Pulling 34:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.90
- Package Height: 2.00
- Package Weight: 0.93
Product info last updated on February 23, 2026 2:57pm UTC
Category: Workholding and Machine Tool Accessories
