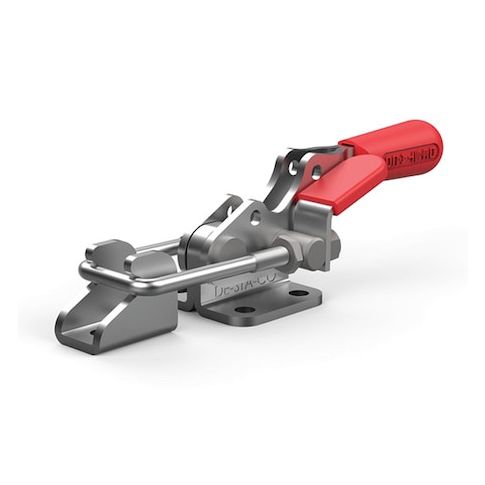

Latch Clamp, SS, U-Bolt, 360 Lbs, 1.19 In MPN:323-SS
Latch Clamp, SS, U-Bolt, 360 Lbs, 1.19 In
The De-Sta-Co Latch Clamp is a versatile and reliable solution for clamping and latching applications. Made from high-quality stainless steel, this latch clamp features a horizontal U-hook design with a maximum holding capacity of 360 lbf. The clamp includes a latch plate for secure attachment and can be mounted with a flange for added stability. Its 27:1 pulling and pushing force ratio ensures efficient operation, making it ideal for use in a variety of industries, including manufacturing, assembly, and packaging. The latch clamp's compact size and lightweight design make it easy to integrate into existing systems, providing a reliable and efficient solution for clamping and latching needs.
Top product features:
- Latch Clamp holds a maximum of 360 lbf.
- Latch Clamp has a hook adjustment of up to 0.36 in.
- Latch Clamp provides a drawing movement of 1.18 in without thumb control.
Top product applications:
- Clamping
- Latching
- Application
Latch Clamp, Base Mounting Style Flange, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 360 lbf, Hook Adjustment - Maximum 0.36 in, Drawing Movement Without Thumb Control 1.18 in, Includes Latch Plate Yes, Requires Articulation Yes, Hook Type Horizontal U, Application Clamping, Latching, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 27:1, Exerted Force : Applied Force - Pushing 27:1, Includes 323104-MSS Latch Plate
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 5.00
- Package Height: 0.80
- Package Weight: 0.16
Product info last updated on February 11, 2026 12:23pm UTC
Category: Hand Tools
