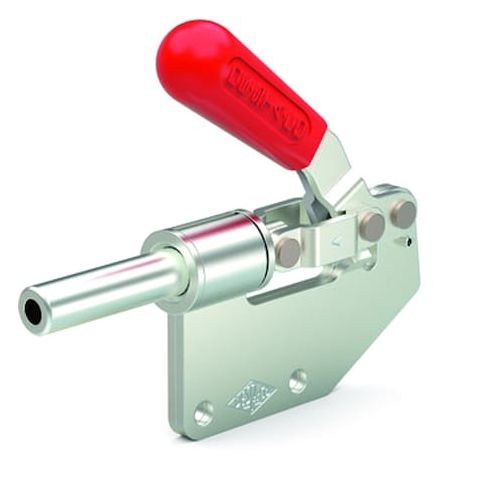

Straight Line Action Clamp, 300lb, 5/16-18 MPN:609-B
Straight Line Action Clamp, 300lb, 5/16-18
The De-Sta-Co Straight Line Action Clamp is a versatile and reliable tool for various clamping applications. With a maximum holding capacity of 300 lbf, it can securely hold workpieces in place, allowing for precise and efficient manufacturing processes. The clamp's vertical base mounting style and horizontal handle orientation provide easy access and control. Its steel body ensures durability and long-lasting performance. Ideal for use in industries such as metalworking, woodworking, and assembly, this clamp is perfect for applications where consistent and repeatable results are crucial. Its compact size and lightweight design make it easy to integrate into any workspace.
Top product features:
- Straight Line Action Clamp applies a holding capacity of up to 300 lbf.
- Straight Line Clamp has a 36:1 or 47:1 ratio of exerted force to applied force when pulling or pushing.
- Straight Line Clamp has a plunger travel of 1.25 in.
Top product applications:
- Clamping
- Locking Position
- Workholding
Straight Line Clamp, Base Mounting Style Vertical, Handle Orientation Horizontal, Includes Locking Handle No, Holding Capacity - Maximum 300 lbf, Plunger Travel 1.25 in, Plunger Height 1.82 in, Plunger Thread 5/16-18, Includes Spindle No, Application Clamping, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Body Material Steel, Exerted Force : Applied Force - Pulling 36:1/47:1, Exerted Force : Applied Force - Pushing 36:1/47:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 5.00
- Package Weight: 0.80
Product info last updated on February 6, 2026 12:28am UTC
Category: Workholding and Machine Tool Accessories
