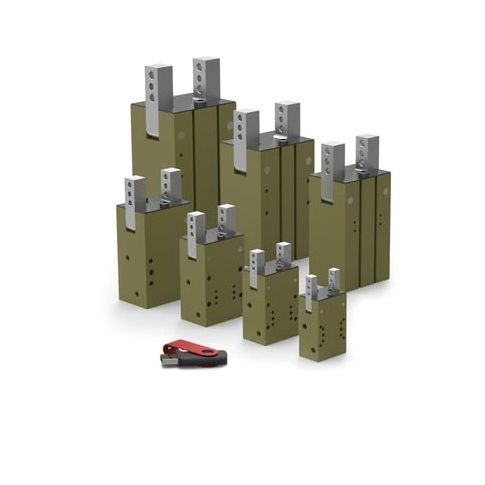

Angular Gripper, 180 Deg, Spring Closed MPN:DCT-12M-RE
Angular Gripper, 180 Deg, Spring Closed
Angular Gripper,180 Deg, Spring Closed, Series DCT, Open Width 180 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 4 bar, Overall Length 30 mm, Overall Width 76 mm, Overall Height 80 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size M5, Weight 0.12 kg, System of Measurement Metric
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 7, 2026 3:34pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
