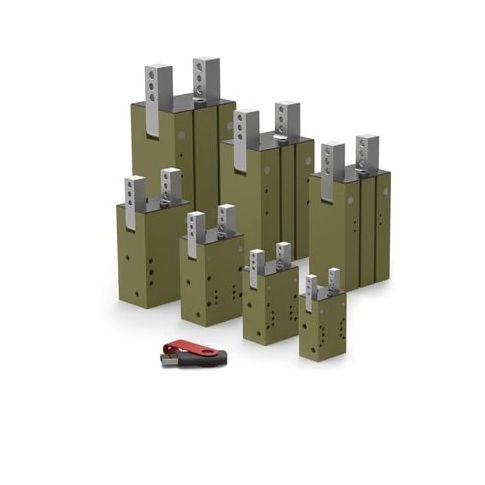

Angular Gripper, 180 Deg MPN:DCT-16M
Angular Gripper, 180 Deg
The De-Sta-Co Angular Gripper is a versatile and reliable component ideal for applications requiring precise angular movement and grip force. Its 180-degree rotation and adjustable stroke make it suitable for a wide range of industries, including robotics, automation, and material handling. The gripper's robust construction and IP43 rating ensure reliable performance in various environments. With a maximum operating pressure of 7 bar and a minimum operating temperature of -35°C, it can handle demanding tasks. Its compact design and low weight make it a convenient choice for space-constrained applications, offering a precise and reliable solution for angular gripping needs.
Top product features:
- 180 degree total stroke
- Gripper rotation of 90 degrees
- Stroke adjustment increment of 90 degrees
Top product applications:
- Pneumatic conveying systems for powder or granular materials, where the gripper's angular design allows for effective material handling and transfer.
- Assembly and disassembly of complex mechanical components, where the gripper's 180-degree rotation and adjustable stroke enable precise and secure handling.
- Automated packaging and labeling operations, where the gripper's IP43 rating and ability to withstand high temperatures make it suitable for use in harsh environments.
Angular Gripper,180 Deg, Series DCT, Open Width 81 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 3 bar, Overall Length 36 mm, Overall Width 36 mm, Overall Height 72 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size M5, Weight 0.16 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 70 N
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 4:33am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
