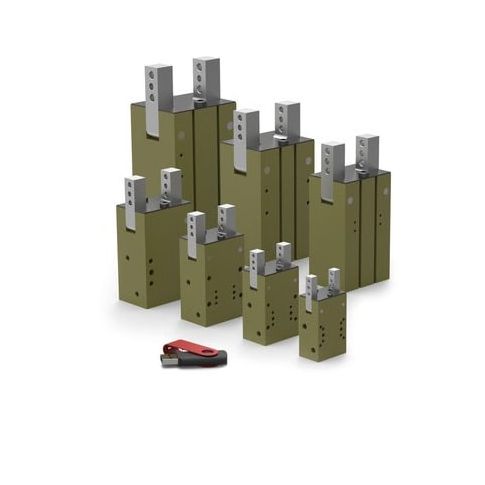

Angular Gripper, 180 Deg MPN:CT-40M
Angular Gripper, 180 Deg
The De-Sta-Co Angular Gripper, 180 Deg, offers a versatile and reliable solution for various applications. Its 180-degree stroke and 90-degree gripper rotation enable precise control over angular movements, making it ideal for tasks such as material handling, assembly, and packaging. With a maximum operating pressure of 7 bar and a minimum operating pressure of 3 bar, this gripper can handle a wide range of loads and pressures. Suitable for use in environments with temperatures between -35°C and 80°C, it is a reliable choice for various industries, including manufacturing, logistics, and food processing.
Top product features:
- 180 degrees total stroke
- Stroke adjustment increment of 90 degrees
- Maximum operating temperature of 80 degrees Celsius
Top product applications:
- Material Handling Automation
- Assembly and Packaging Line
- Automotive Manufacturing
Angular Gripper,180 Deg, Series CT, Open Width 149 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 3 bar, Overall Length 66 mm, Overall Width 66 mm, Overall Height 138 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size 1/8 in, Air Inlet Type G, Weight 1.18 kg, System of Measurement Metric
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 17, 2026 6:24pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
