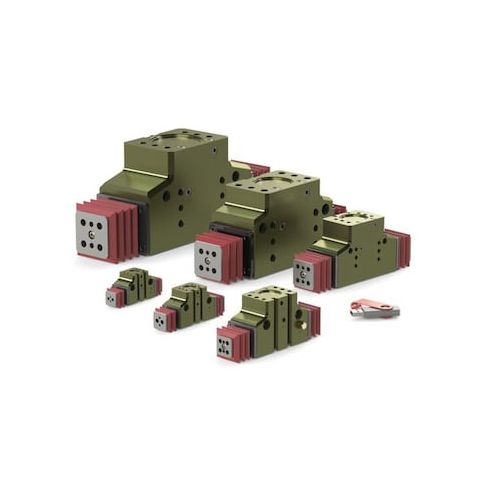

Parallel Gripper, Direct Connect MPN:DPDL-088M-075
Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect is a reliable and efficient solution for various industrial applications. Its compact design and direct connection system make it ideal for use in automation, robotics, and material handling systems. With a maximum operating pressure of 7 bar and a total rated grip force of 222 N, this gripper can securely hold and manipulate objects with precision. Its temperature range and IP66 rating ensure durability and protection against harsh environments. Suitable for use in a variety of industries, including manufacturing, packaging, and logistics, this gripper provides a high level of accuracy and repeatability.
Top product features:
- Stroke Length 19.1 mm provides a precise distance for gripping applications.
- Maximum Operating Pressure 7 bar allows the gripper to handle heavy loads.
- Total Rated Grip Force @ 100 psi 222 N enables the gripper to securely hold objects.
Top product applications:
- Automotive manufacturing for assembly of small engine components
- Assembly of medical devices, such as surgical instruments
- Robotics and automation for pick-and-place operations
Parallel Gripper,Direct Connect, Series DPDL, Stroke Length 19.1 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 36.1 mm, Overall Width 82 mm, Overall Height 56 mm, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.43 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 222 N, IP Rating IP66, Seal Material Buna-N, Displacement 4.4 cc, Accuracy +/-0.05 mm, Repeatability +/-0.03 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
