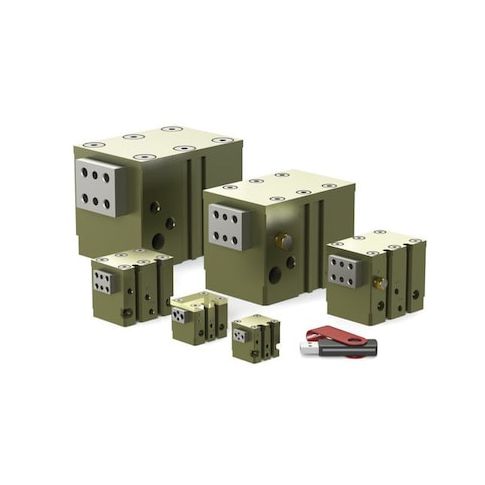

Parallel Gripper, Direct Connect MPN:DPDS-088M-025
Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect, is a reliable and efficient component for various industrial applications. Its compact design and adjustable stroke length make it suitable for use in assembly, testing, and automation processes. The gripper's high grip force and accuracy enable precise handling of small parts, while its temperature range and IP54 rating ensure durability in harsh environments. Ideal for use in assembly, testing, and automation, this gripper is a valuable addition to any industrial production line, particularly in the automotive, aerospace, and electronics industries where precision and reliability are paramount.
Top product features:
- Stroke Length 6.4 mm allows for precise control over gripping action
- Maximum Operating Pressure 7 bar enables high-force gripping in demanding applications
- Total Rated Grip Force @ 100 psi 222 N provides a strong hold on objects
Top product applications:
- Material Handling Equipment
- Automotive Assembly Lines
- Medical Device Manufacturing
Parallel Gripper,Direct Connect, Series DPDS, Stroke Length 6.4 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 36.1 mm, Overall Width 51 mm, Overall Height 41.9 mm, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.23 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 222 N, IP Rating IP54, Seal Material Buna-N, Displacement 1.5 cc, Accuracy +/-0.05 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 24, 2026 1:35am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
