Parallel Gripper, Direct Connect MPN:DPDL-047M-038

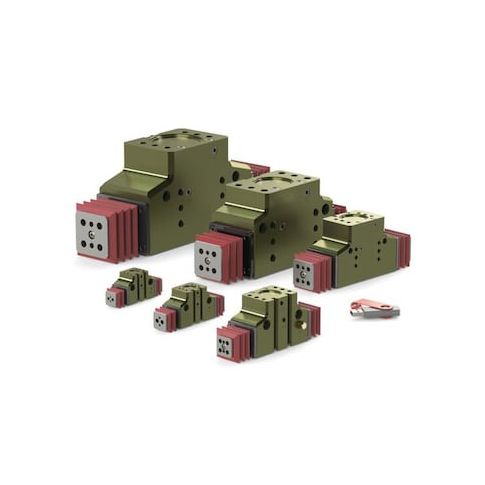

Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect, is a versatile and reliable component ideal for various industrial applications. Its compact design and direct connection make it suitable for use in assembly, testing, and inspection processes. The gripper's ability to operate within a wide temperature range and withstand high pressures ensures consistent performance in demanding environments. With a total rated grip force of 62 N, it can securely hold and manipulate parts with precision, making it an excellent choice for applications in the automotive, aerospace, and medical industries. Its compact size and ease of integration also make it a great fit for automation and robotics systems.
Top product features:
- Stroke Length 9.5 mm allows for precise control over gripping distance
- Maximum Operating Pressure 7 bar enables high-pressure applications
- Seal Material Buna-N provides a durable and reliable seal for long-term use
Top product applications:
- Automotive assembly line
- Material handling equipment
- Medical device manufacturing
Parallel Gripper,Direct Connect, Series DPDL, Stroke Length 9.5 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 22.2 mm, Overall Width 45 mm, Overall Height 30.7 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.08 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 62 N, IP Rating IP66, Seal Material Buna-N, Displacement 0.6 cc, Accuracy +/-0.05 mm, Repeatability +/-0.03 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 28, 2026 9:20am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
