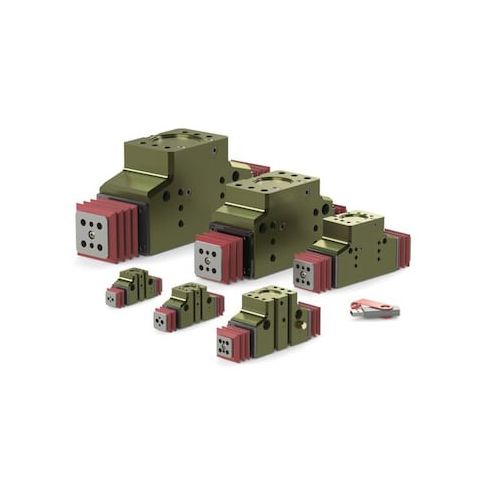

Parallel Gripper, Direct Connect MPN:DPDL-056M-050
Parallel Gripper, Direct Connect
The De-Sta-Co Parallel Gripper, Direct Connect is a versatile and reliable component ideal for a wide range of industrial applications. Its compact design and robust construction make it suitable for use in assembly, test, and inspection processes. With a maximum operating pressure of 7 bar and a total rated grip force of 98 N, this gripper can securely hold and manipulate small parts with precision. Its temperature resistance and IP66 rating ensure reliable performance in various environments. Suitable for use in industries such as automotive, aerospace, and electronics, this gripper is a valuable addition to any manufacturing process.
Top product features:
- Stroke Length 12.7 mm provides a controlled grip distance
- Maximum Operating Pressure 7 bar allows for high-pressure applications
- Total Rated Grip Force @ 100 psi 98 N enables secure and precise object handling
Top product applications:
- Automotive Assembly Line
- Material Handling System
- Robotics and Machine Automation
Parallel Gripper,Direct Connect, Series DPDL, Stroke Length 12.7 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 24.1 mm, Overall Width 56 mm, Overall Height 36.2 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.14 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 98 N, IP Rating IP66, Seal Material Buna-N, Displacement 1.2 cc, Accuracy +/-0.05 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 2, 2026 3:57pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
