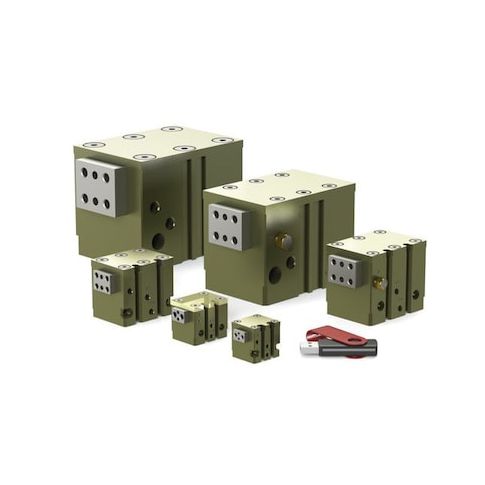

Parallel Gripper, Direct Connect MPN:DPDS-056M-019
Parallel Gripper, Direct Connect
The Parallel Gripper, Direct Connect from De-Sta-Co is a precision-engineered component ideal for applications requiring high grip force and accuracy. Suitable for use in a variety of industries, including automotive, aerospace, and medical device manufacturing, this gripper excels in tasks such as assembly, inspection, and testing. With a maximum operating pressure of 7 bar and a total rated grip force of 98 N, it provides reliable and consistent performance. Its compact design and durable construction make it a valuable addition to any production line, offering improved efficiency and productivity.
Top product features:
- Stroke Length 4.8 mm
- Maximum Operating Pressure 7 bar
- Seal Material Buna-N
Top product applications:
- Automotive manufacturing: used for gripping and holding parts during assembly and inspection processes.
- Robotics and automation: integrated into robotic arms and grippers for precision handling and manipulation of small parts.
- Medical device assembly: used for gripping and placing small components, such as circuit boards or medical implants, during the assembly process.
Parallel Gripper,Direct Connect, Series DPDS, Stroke Length 4.8 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.5 bar, Overall Length 24.1 mm, Overall Width 35 mm, Overall Height 27.4 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.07 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 98 N, IP Rating IP54, Seal Material Buna-N, Displacement 0.5 cc, Accuracy +/-0.05 mm, Repeatability +/-0.03 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
