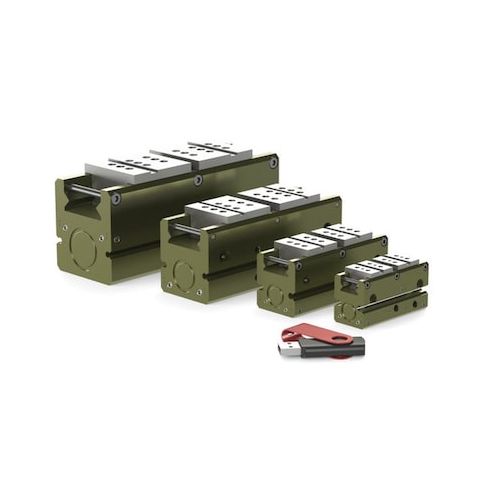

Parallel Gripper, Precision, Directconnect MPN:DPP-10M-06
Parallel Gripper, Precision, Directconnect
The De-Sta-Co Parallel Gripper, Precision, Directconnect is a reliable and precise solution for various industrial applications. This compact gripper features a directconnect design for easy integration into your system, and a robust construction that withstands operating pressures of up to 7 bar. With a total rated grip force of 111 N, it can handle a wide range of tasks, from assembly and inspection to testing and packaging. Its temperature range of -35°C to 80°C ensures reliable performance in various environments, making it suitable for use in automotive, aerospace, and medical device manufacturing, as well as in laboratories and quality control facilities.
Top product features:
- Parallel Gripper operation at pressures between 0.3 and 7 bar
- Total Rated Grip Force of 111 N at 100 psi
- Displacement of 0.5 cc
Top product applications:
- Automotive manufacturing: used to assemble and disassemble parts during the manufacturing process.
- Medical device manufacturing: used to handle and assemble small medical devices, such as surgical instruments and implants.
- Electronics assembly: used to pick and place components during the assembly of electronic devices.
Parallel Gripper,Precision,Directconnect, Series DPP, Open Width 53 mm, Stroke Length 6.4 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 0.3 bar, Overall Length 25 mm, Overall Width 62.9 mm, Overall Height 34.67 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.16 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 111 N, IP Rating IP43, Seal Material Buna-N, Displacement 0.5 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 27, 2026 6:49pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
