Parallel Gripper, Precision, Directconnect MPN:DPP-10M-12

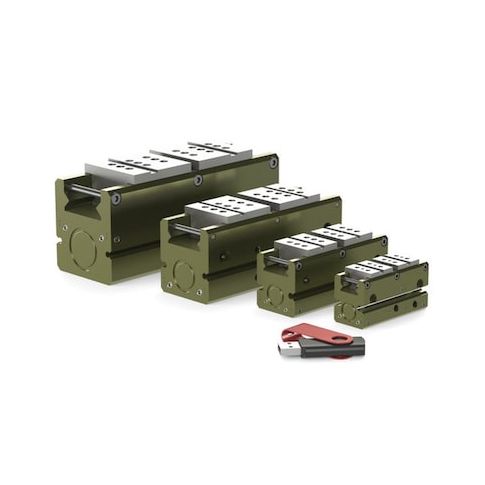

Parallel Gripper, Precision, Directconnect
The De-Sta-Co Parallel Gripper, Precision, Directconnect is a high-performance gripping solution designed for precise and reliable operation in various industrial applications. This compact gripper features a parallel design, allowing for efficient and consistent grip force, and is suitable for use in temperature ranges from -35°C to 80°C. With a maximum operating pressure of 7 bar and a total rated grip force of 111 N, this gripper is ideal for applications such as robotics, material handling, and assembly. Its compact size and precision design make it an excellent choice for industries requiring high accuracy and reliability.
Top product features:
- Parallel Gripper design allows for a direct connection to a system
- The gripper has a precision open width of 62 mm
- The gripper has a total rated grip force of 111 N at 100 psi
Top product applications:
- Assembly and testing of electronic components
- Automated pick and place of small parts
- Assembly of medical devices and equipment
Parallel Gripper,Precision,Directconnect, Series DPP, Open Width 62 mm, Stroke Length 12.7 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 0.3 bar, Overall Length 25 mm, Overall Width 73.7 mm, Overall Height 34.67 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.2 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 111 N, IP Rating IP43, Seal Material Buna-N, Displacement 1.1 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 5, 2026 1:22pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
