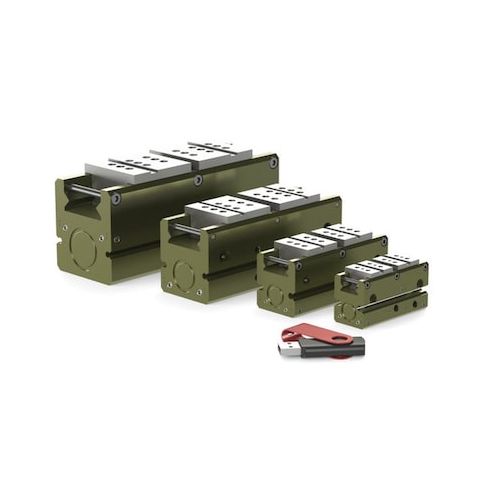

Parallel Gripper, Precision, Directconnect MPN:DPP-14M-15
Parallel Gripper, Precision, Directconnect
The De-Sta-Co Parallel Gripper, Precision, Directconnect is a reliable and efficient solution for various industrial applications. This precision gripper is designed to provide a secure grip on objects, with a total rated grip force of 200 N at 100 psi. Its compact size and directconnect design make it ideal for use in tight spaces and high-speed production lines. The gripper's temperature range and durable seal material ensure reliable performance in a variety of environments. Suitable for applications in packaging, material handling, and automation, this gripper is a valuable addition to any manufacturing process.
Top product features:
- Parallel gripper design for precision applications
- Stroke length of 15.9 mm for controlled movement
- Maximum operating pressure of 7 bar for high-force gripping
Top product applications:
- Automotive manufacturing: used to grip and assemble components in the production of vehicle parts
- Assembly of small mechanical components: the gripper's precision and directconnect features make it suitable for use in assembly lines where small components need to be gripped and manipulated
- Medical device manufacturing: the gripper's precision and ability to operate in a wide temperature range make it a good fit for use in the assembly of medical devices and equipment
Parallel Gripper,Precision,Directconnect, Series DPP, Open Width 79 mm, Stroke Length 15.9 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 0.3 bar, Overall Length 34 mm, Overall Width 90.2 mm, Overall Height 42.21 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.48 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 200 N, IP Rating IP43, Seal Material Buna-N, Displacement 2.5 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 4, 2026 10:59pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
