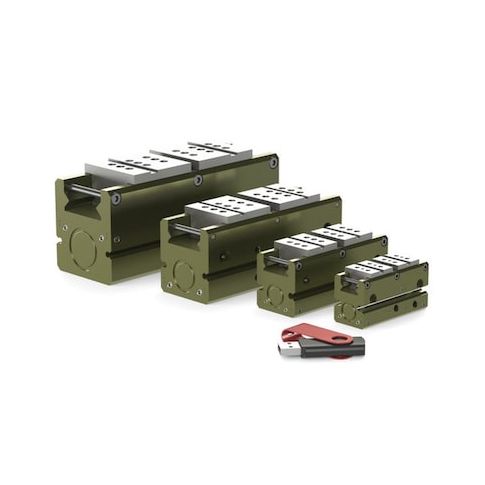

Parallel Gripper, Precision, Directconnect MPN:DPP-20M-38
Parallel Gripper, Precision, Directconnect
The De-Sta-Co Parallel Gripper, Precision, Directconnect is a high-performance gripping solution for various industrial applications. Its precision design and directconnect functionality enable efficient and reliable operation, while its compact size and lightweight construction make it ideal for use in tight spaces. With a maximum operating pressure of 7 bar and a total rated grip force of 423 N, this gripper is suitable for applications such as material handling, assembly, and testing. Its temperature range of -35 to 80°C and IP43 rating ensure durability and resistance to environmental factors. Perfect for use in manufacturing, automation, and robotics.
Top product features:
- Parallel Gripper, Precision, Directconnect has a maximum operating pressure of 7 bar.
- Parallel Gripper, Precision, Directconnect has a maximum operating temperature of 80 Degrees C.
- Parallel Gripper, Precision, Directconnect has a total rated grip force of 423 N at 100 psi.
Top product applications:
- Automotive Manufacturing: The Parallel Gripper can be used to assemble and inspect automotive parts, such as engine components and transmission systems.
- Medical Device Assembly: The precision and reliability of the Parallel Gripper make it suitable for assembling and testing medical devices, such as surgical instruments and diagnostic equipment.
- Electronics Component Handling: The gripper's precision and ability to handle small components make it ideal for handling and assembling electronic components, such as printed circuit boards and connectors.
Parallel Gripper,Precision,Directconnect, Series DPP, Open Width 161 mm, Stroke Length 38.1 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 0.3 bar, Overall Length 46 mm, Overall Width 175.5 mm, Overall Height 55.63 mm, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.41 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 423 N, IP Rating IP43, Seal Material Buna-N, Displacement 12.8 cc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 24, 2026 2:48am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
