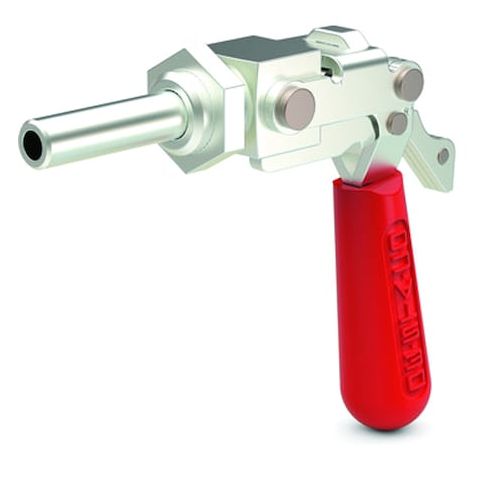

Straight Line Clamp MPN:604-R
Straight Line Clamp
The Straight Line Clamp from De-Sta-Co is a versatile and reliable tool for various applications, including assembly, checking fixtures, tensioning devices, and welding fixtures. Its locking handle ensures secure holding capacity of up to 300 lbf, while the 26:1 pulling force ratio provides efficient operation. With a compact design and horizontal handle orientation, this clamp is ideal for use in a range of industries and work environments. Its durability and ease of use make it an essential component for any production line or workshop, allowing for precise control and consistent results.
Top product features:
- Straight Line Clamp has a locking handle for secure positioning.
- It can exert a maximum holding capacity of 300 lbf.
- The plunger has a 1.5 in travel distance.
Top product applications:
- Assembly
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Through-Hole, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 300 lbf, Plunger Travel 1.5 in, Plunger Height 0.44 in, Plunger Thread 5/16-18, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 1.5 in, Body Material Steel, Exerted Force : Applied Force - Pulling 26:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 1.00
- Package Weight: 0.65
Product info last updated on February 2, 2026 6:50pm UTC
Category: Workholding and Machine Tool Accessories
