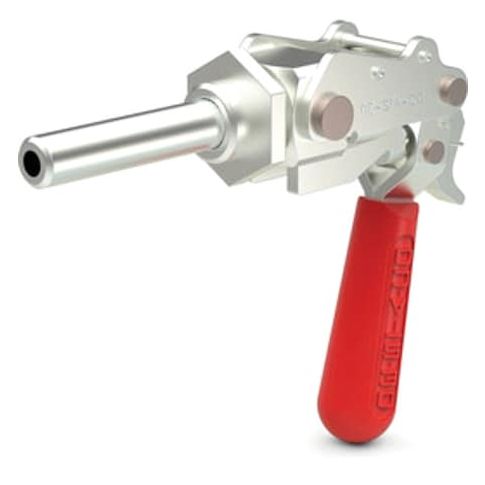

Straight Line Clamp MPN:624-MMR
Straight Line Clamp
The Straight Line Clamp from De-Sta-Co is a reliable and versatile tool for various manufacturing and assembly applications. Its robust steel body and M10 threaded plunger provide a maximum holding capacity of 700 lbf, making it suitable for tasks such as assembly, checking fixtures, and tensioning devices. The locking handle ensures secure positioning, while the 2.63 inches of plunger travel and 0.75 inches of plunger height offer precise control. With a 21:1 pulling force ratio, this clamp is ideal for welding fixtures, accommodating workpieces of varying sizes, and maintaining consistent tension. Its compact design and durable construction make it a valuable addition to any production line.
Top product features:
- Holding Capacity Maximum 700 lbf
- Plunger Travel 2.63 in
- Exerted Force : Applied Force Pulling 21:1
Top product applications:
- Assembly
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Through-Hole, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 700 lbf, Plunger Travel 2.63 in, Plunger Height 0.75 in, Plunger Thread M10, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.61 in, Body Material Steel, Exerted Force : Applied Force - Pulling 21:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 8.00
- Package Height: 2.00
- Package Weight: 1.63
Product info last updated on February 8, 2026 10:31am UTC
Category: Workholding and Machine Tool Accessories
