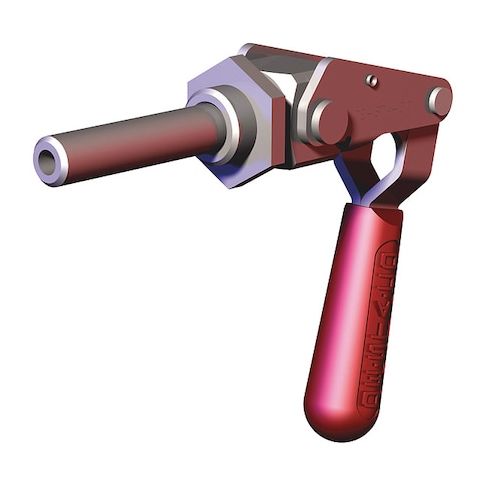

Straight Line Clamp MPN:624-MMRSS
Straight Line Clamp
The De-Sta-Co Straight Line Clamp is a versatile and reliable tool for various applications. Its stainless steel body and M10 plunger thread ensure durability and precision. With a maximum holding capacity of 700 lbf and a 2.63-inch plunger travel, it can accommodate a range of workpieces. The clamp's locking handle and 21:1 pulling force ratio make it ideal for assembly, checking fixtures, and tensioning devices. Its compact design and 2.61-inch arm length make it perfect for welding fixtures and other applications where space is limited. The clamp's extended and retracted positions offer flexibility and precision in various manufacturing processes.
Top product features:
- Straight Line Clamp has a locking handle for secure operation.
- Straight Line Clamp has a maximum holding capacity of 700 lbf.
- Straight Line Clamp has a 21:1 ratio of exerted force to applied force when pulling.
Top product applications:
- Assembly
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Flange, Includes Locking Handle Yes, Holding Capacity - Maximum 700 lbf, Plunger Travel 2.63 in, Plunger Height 0.81 in, Plunger Thread M10, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.61 in, Body Material Stainless Steel, Exerted Force : Applied Force - Pulling 21:1, Exerted Force : Applied Force - Pushing 49:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 5.60
- Package Height: 1.80
- Package Weight: 1.96
Product info last updated on March 3, 2026 7:18pm UTC
Category: Workholding and Machine Tool Accessories
