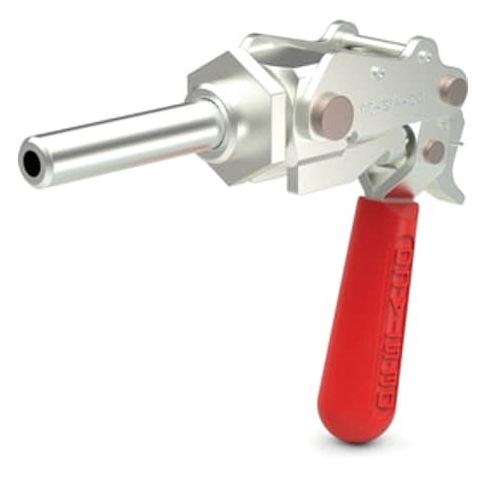

Straight Line Clamp MPN:624-R
Straight Line Clamp
The De-Sta-Co Straight Line Clamp is a reliable and versatile tool for various applications, including assembly, checking fixtures, tensioning devices, and welding fixtures. Its locking handle ensures secure holding capacity of up to 700 lbf, allowing for precise control and positioning of workpieces. The clamp's horizontal handle orientation and 2.63 in plunger travel make it easy to use and maneuver. With its steel body and 21:1 pulling force ratio, this clamp is perfect for applications that require consistent and reliable holding power. Its compact design and easy-to-use mechanism make it an essential tool for any workshop or production line.
Top product features:
- Straight Line Clamp has a locking handle that allows for secure clamping and holding of workpieces.
- The clamp has a maximum holding capacity of 700 lbf, enabling it to securely hold workpieces of a certain weight.
- The clamp has a 21:1 pulling force ratio, providing a high level of control and precision when applying force to a workpiece.
Top product applications:
- Assembly
- Checking Fixtures
- Welding Fixtures
Straight Line Clamp, Base Mounting Style Through-Hole, Handle Orientation Horizontal, Includes Locking Handle Yes, Holding Capacity - Maximum 700 lbf, Plunger Travel 2.63 in, Plunger Height 0.75 in, Plunger Thread 3/8-16, Includes Spindle No, Application Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures, Locking Position Extended, Retracted, Accommodates Workpiece Variation No, Arm Length 2.61 in, Body Material Steel, Exerted Force : Applied Force - Pulling 21:1
Additional Information
- Country of Origin: TH
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 15
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 41.00
Product info last updated on February 20, 2026 5:38am UTC
Category: Workholding and Machine Tool Accessories
