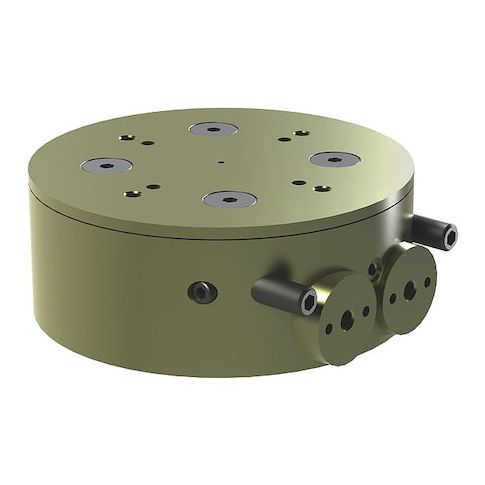

Rotary Actuator, 90 Deg Rotation MPN:RR-28M-90
Rotary Actuator, 90 Deg Rotation
The De-Sta-Co Rotary Actuator is a reliable and efficient solution for a wide range of applications. With a maximum output torque of 2.5 N-m and a 90-degree rotation angle, this actuator is perfect for use in industries such as aerospace, automotive, and medical device manufacturing. Its compact design and low weight make it easy to integrate into existing systems, while its high operating pressure and temperature ranges ensure reliable performance in demanding environments. Suitable for use with air as a fluid, this actuator is ideal for applications requiring precise and controlled motion.
Top product features:
- 90 Deg Rotation
- Maximum Output Torque 2.5 N-m
- Double Rack Actuator Style
Top product applications:
- Machine Tool Automation
- Automotive Assembly Line
- Medical Device Manufacturing
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 2.5 N-m, Rotation Angle 90 Degrees , Bore Diameter 19.1 mm, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 85.73 mm, Shaft Length 3.18 mm, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.65 kg, Maximum Operating Temperature 80 Degrees C, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -35 Degrees C, For Fluid Type Air, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 10, 2026 2:33pm UTC
Category: HVACR and Appliance Controls
