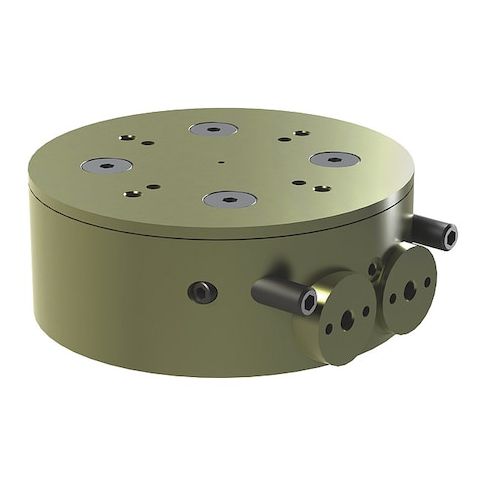

Rotary Actuator, 180 Deg Rotation MPN:RR-28-180
Rotary Actuator, 180 Deg Rotation
The De-Sta-Co Rotary Actuator is a highly versatile and reliable solution for a wide range of applications. With a 180-degree rotation angle and maximum output torque of 22 in-lb, this actuator is perfect for use in pneumatic systems where precise control is required. Its compact design and lightweight construction make it easy to integrate into existing systems, while its high operating temperature range of 180°F ensures reliable performance even in demanding environments. Suitable for applications such as valve actuation, positioning, and mechanical advantage, this rotary actuator is a valuable addition to any pneumatic system.
Top product features:
- 180 Deg Rotation
- Maximum Output Torque 22 in-lb
- Actuator Style Double Rack
Top product applications:
- Automotive manufacturing: used in assembly line equipment to rotate parts and tools
- Medical equipment: used in surgical instruments to rotate and position medical devices
- Aerospace industry: used in aircraft assembly and maintenance equipment to rotate and position components
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 22 in-lb, Rotation Angle 180 Degrees , Bore Diameter 3/4 in, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 3 3/8 in, Shaft Length 1/8 in, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 1.2 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -30 Degrees F, For Fluid Type Air, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 35 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 31, 2026 9:23am UTC
Category: HVACR and Appliance Controls
