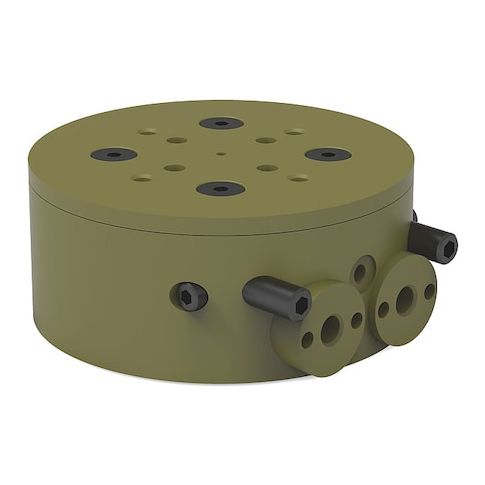

Rotary Actuator, 90 Deg Rotation MPN:RR-18M-90
Rotary Actuator, 90 Deg Rotation
The De-Sta-Co Rotary Actuator is a reliable and efficient solution for a variety of applications, including material handling, packaging, and automation. With a 90-degree rotation and maximum output torque of 0.7 N-m, this actuator is capable of handling a range of tasks with ease. Its compact design and robust construction make it ideal for use in tight spaces, while its ability to operate in temperatures from -35 to 80 degrees Celsius ensures reliable performance in a range of environments. Suitable for use with air, this actuator is a versatile and cost-effective solution for many industrial applications.
Top product features:
- 90 Deg Rotation
- Maximum Output Torque 0.7 N-m
- Double Rack Actuator Style
Top product applications:
- Automotive manufacturing for door lock actuators
- Material handling equipment for rotating conveyor belts
- Medical equipment for rotating medical tables
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 0.7 N-m, Rotation Angle 90 Degrees , Bore Diameter 12.7 mm, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 57.15 mm, Shaft Length 3.18 mm, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.22 kg, Maximum Operating Temperature 80 Degrees C, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -35 Degrees C, For Fluid Type Air, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
