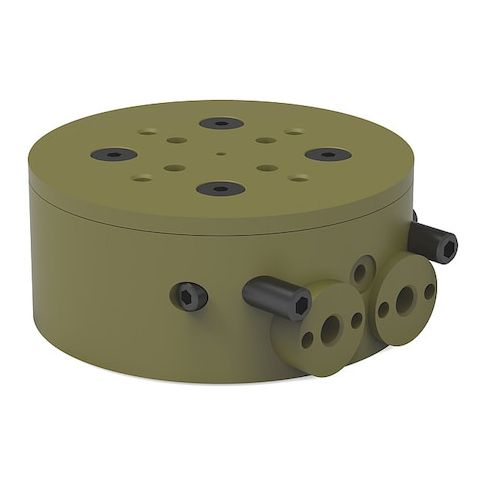

Rotary Actuator, 180 Deg Rotation MPN:RR-18M-180
Rotary Actuator, 180 Deg Rotation
The De-Sta-Co Rotary Actuator is a powerful and versatile solution for a wide range of applications. With a maximum output torque of 0.7 N-m and a 180-degree rotation angle, this actuator is ideal for use in tight spaces where precision and control are essential. Suitable for use with air, this actuator can operate at temperatures from -35 to 80 degrees Celsius and pressures up to 0.69 MPa. Its compact design and lightweight construction make it perfect for use in robotics, medical devices, and other precision machinery. With a lead time of just 10 days, this actuator is ready to meet your needs.
Top product features:
- 180 Deg Rotation
- Double Rack Actuator Style
- 0.7 N-m Maximum Output Torque
Top product applications:
- Medical Device Actuation
- Automotive Steering System
- Material Handling Equipment
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 0.7 N-m, Rotation Angle 180 Degrees , Bore Diameter 12.7 mm, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 57.15 mm, Shaft Length 3.18 mm, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.22 kg, Maximum Operating Temperature 80 Degrees C, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -35 Degrees C, For Fluid Type Air, System of Measurement Metric
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on March 30, 2026 11:25am UTC
Category: HVACR and Appliance Controls
