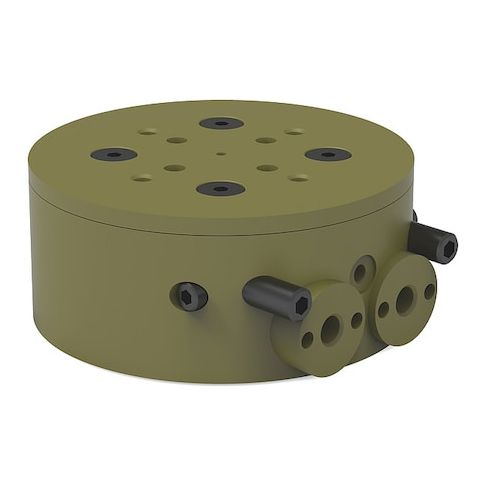

Rotary Actuator, 180 Deg Rotation MPN:RR-18-180
Rotary Actuator, 180 Deg Rotation
The De-Sta-Co Rotary Actuator offers precise 180-degree rotation control for a wide range of applications. This compact, air-powered actuator features a maximum output torque of 6.5 in-lb and a maximum operating pressure of 0.69 MPa. Ideal for use in industries such as aerospace, medical devices, and laboratory equipment, this actuator provides reliable and repeatable motion control. Its compact size and lightweight design make it easy to integrate into tight spaces, while its high-temperature resistance ensures reliable operation in demanding environments. Perfect for applications requiring precise rotation control, this actuator is a reliable and efficient solution.
Top product features:
- Rotary actuator provides 180 degrees of rotation
- Double rack actuator style allows for high output torque
- Shaft diameter of 2 1/4 inches enables efficient power transmission
Top product applications:
- Medical Device Actuation
- Automotive Steering System
- Material Handling Equipment
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 6.5 in-lb, Rotation Angle 180 Degrees , Bore Diameter 1/2 in, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 2 1/4 in, Shaft Length 1/8 in, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.48 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -30 Degrees F, For Fluid Type Air, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 30, 2026 1:23pm UTC
Category: HVACR and Appliance Controls
