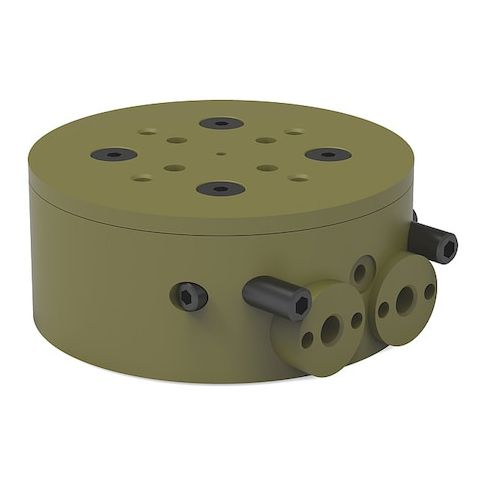

Rotary Actuator, 90 Deg Rotation MPN:RR-18-90
Rotary Actuator, 90 Deg Rotation
The De-Sta-Co Rotary Actuator is a reliable and efficient solution for applications requiring precise 90-degree rotation. This compact actuator delivers a maximum output torque of 6.5 in-lb, making it suitable for a wide range of industries, including aerospace, medical, and industrial automation. Its robust design and high-quality components ensure smooth operation and long lifespan. The actuator's compact size and lightweight design make it easy to integrate into tight spaces, while its air-powered operation provides a clean and quiet alternative to traditional hydraulic systems. Ideal for applications such as valve control, positioning systems, and robotic components.
Top product features:
- 90 Deg Rotation
- Maximum Output Torque 6.5 in-lb
- Double Rack Actuator Style
Top product applications:
- Automotive Industry: The rotary actuator can be used in automotive applications such as power window regulators, seat adjusters, and door lock actuators.
- Medical Equipment: The compact design and precise control of the rotary actuator make it suitable for use in medical equipment such as ventilators, patient lifts, and hospital bed controls.
- Robotics and Automation: The rotary actuator can be used in robotics and automation applications such as robotic arms, pick-and-place machines, and assembly line equipment where precise and reliable motion control is required.
Rotary Actuator, Actuator Style Double Rack, Maximum Output Torque 6.5 in-lb, Rotation Angle 90 Degrees , Bore Diameter 1/2 in, Maximum Operating Pressure 0.69 MPa, Shaft Diameter 2 1/4 in, Shaft Length 1/8 in, Inlet Size 5/16 in, Air Inlet Type NPT, Cushion Type None, Weight 0.48 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Pressure 29.99 psi, Minimum Operating Temperature -30 Degrees F, For Fluid Type Air, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 28 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 7, 2026 11:16am UTC
Category: HVACR and Appliance Controls
