Mini Power Slide, 2In Stroke MPN:MPS-2-4

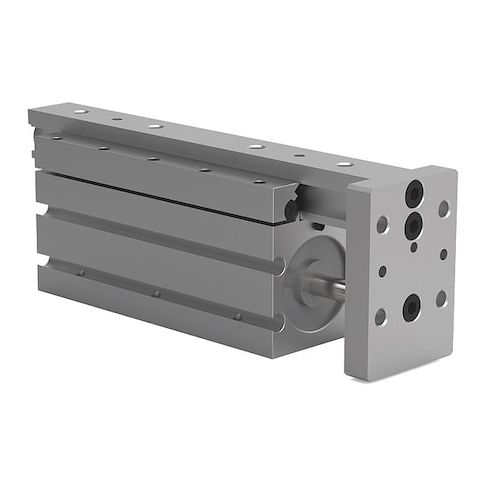

Mini Power Slide, 2In Stroke
The Mini Power Slide from De-Sta-Co is a compact and reliable linear motion solution for a wide range of applications. With a maximum stroke of 2 inches and a maximum payload of 3 pounds, this slide is ideal for use in precision assembly, testing, and inspection equipment, as well as in semiconductor and medical device manufacturing. Its high accuracy and repeatability ensure consistent and reliable performance, while its fast actuation time of 0.24 seconds makes it suitable for high-speed applications. The Mini Power Slide is designed for use in harsh environments, with a temperature range of -30 to 180 degrees F.
Top product features:
- Maximum stroke of 2 inches
- Thrust force of 44 pounds at 100 psi
- Accuracy of +/0.0001 inch
Top product applications:
- Positioning small components in a manufacturing line
- Assembly of delicate parts in a laboratory setting
- Testing of small mechanical parts in a quality control environment
Mini Power Slide, Maximum Stroke 2 in, Cylinder Bore Diameter 3/4 in, Maximum Payload 3 lb, Series MPS, Thrust Force @ 100 psi 44 lbf, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.24 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
