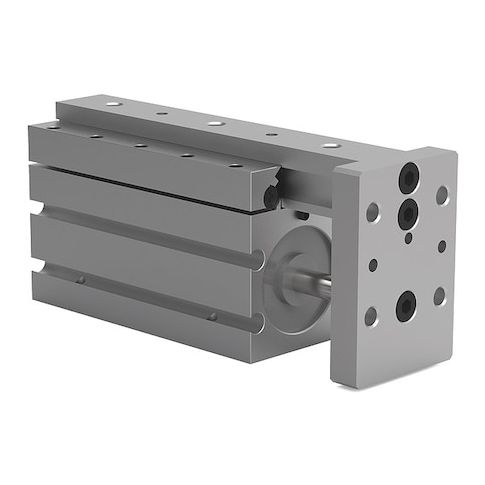

Mini Power Slide, 1-1/2In Stroke MPN:MPS-2-3
Mini Power Slide, 1-1/2In Stroke
The Mini Power Slide from De-Sta-Co is a compact and precise linear actuator designed for applications requiring high accuracy and reliability. With a maximum stroke of 1.5 inches and a thrust force of 44 lbf at 100 psi, this slide is ideal for use in medical devices, laboratory equipment, and other industries where precision and control are paramount. Its compact size and low payload capacity make it perfect for applications requiring precise movement in tight spaces, such as in medical devices, laboratory equipment, and other industries where precision and control are critical.
Top product features:
- Provides a maximum stroke of 1 1/2 inches
- Has a thrust force of 44 pounds at 100 psi
- Accurately positions within +/-0.0001 inch
Top product applications:
- Assembly of small parts and components in the aerospace industry
- Precision placement of tiny components in medical devices
- Movement and positioning of small mechanisms in robotics
Mini Power Slide, Maximum Stroke 1 1/2 in, Cylinder Bore Diameter 3/4 in, Maximum Payload 2 lb, Series MPS, Thrust Force @ 100 psi 44 lbf, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.19 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
