Mini Power Slide, 1In Stroke MPN:MPS-2-2

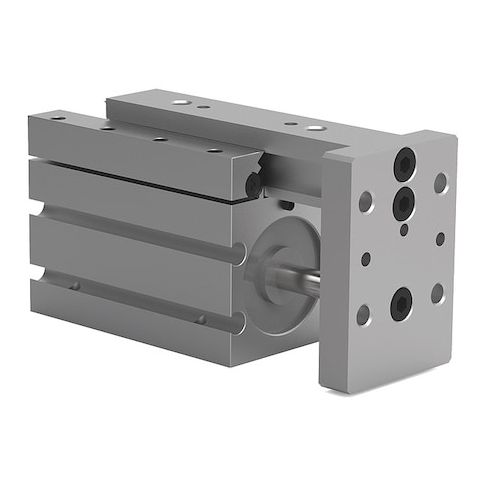

Mini Power Slide, 1In Stroke
The Mini Power Slide from De-Sta-Co is a compact and precise linear actuator ideal for applications requiring a small stroke and high accuracy. With a maximum stroke of 1 inch and a thrust force of 44 lbf at 100 psi, this miniature power slide is perfect for use in medical devices, aerospace, and other industries where precision and reliability are paramount. Its compact size and low payload capacity make it suitable for use in tight spaces and for precise positioning of small components. The Mini Power Slide also offers fast actuation times and a wide operating temperature range, making it a versatile and reliable choice for a variety of applications.
Top product features:
- Maximum stroke of 1 inch
- Cylinder bore diameter of 3/4 inch
- Thrust force of 44 lbf at 100 psi
Top product applications:
- Precision assembly and placement in medical device manufacturing
- Automotive parts assembly and inspection
- Microelectronic component placement and testing
Mini Power Slide, Maximum Stroke 1 in, Cylinder Bore Diameter 3/4 in, Maximum Payload 1 lb, Series MPS, Thrust Force @ 100 psi 44 lbf, Size 2 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.16 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
