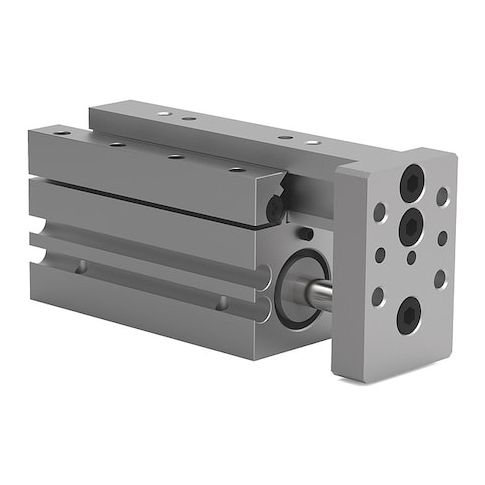

Mini Power Slide 1In Stroke MPN:MPS-1-2
Mini Power Slide 1In Stroke
The Mini Power Slide 1In Stroke from De-Sta-Co is a compact and reliable linear actuator designed for precise movement in a variety of applications. With a maximum stroke of 1 inch and a payload capacity of 0.7 pounds, it's ideal for use in laboratory settings, medical devices, and precision machinery. The slide's high accuracy and repeatability ensure consistent performance, while its fast actuation time of 0.11 seconds enables rapid movement. Suitable for temperatures ranging from -30°F to 180°F, this actuator is a versatile solution for applications requiring precise and reliable motion control.
Top product features:
- Maximum Stroke of 1 in
- Thrust Force of 15 lbf at 100 psi
- Accuracy of +/-0.0001 in
Top product applications:
- Assembly of small parts
- Positioning of workpieces in manufacturing
- Testing and inspection of miniature components
Mini Power Slide, Maximum Stroke 1 in, Cylinder Bore Diameter 1/2 in, Maximum Payload 0.7 lb, Series MPS, Thrust Force @ 100 psi 15 lbf, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.11 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
