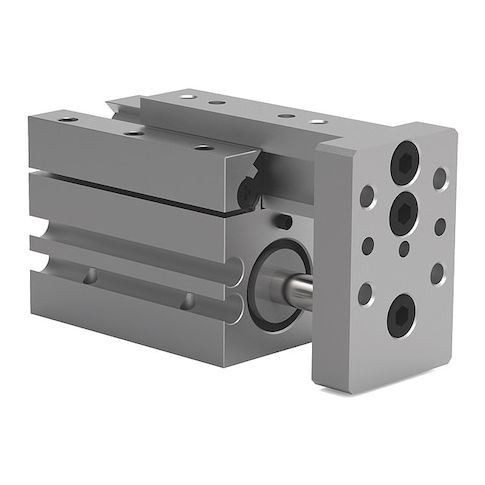

Mini Power Slide, 1/2In Stroke MPN:MPS-1-1
Mini Power Slide, 1/2In Stroke
The Mini Power Slide from De-Sta-Co is a compact, high-precision linear actuator ideal for applications requiring precise movement and control. With a maximum stroke of 1/2 inch and a thrust force of 15 lbf at 100 psi, it is perfect for use in assembly, test, and inspection systems. Its high accuracy and repeatability of +/-0.01 inch make it suitable for applications where precision is crucial. The Mini Power Slide is also suitable for use in medical devices, aerospace, and semiconductor manufacturing. Its compact size and high precision make it an excellent choice for applications where space is limited.
Top product features:
- Maximum stroke of 1/2 inch
- Thrust force of 15 lbf at 100 psi
- Accuracy of +/-0.0001 inch
Top product applications:
- Automotive assembly lines for precision component placement
- Medical device manufacturing for precise part movement
- Aerospace industry for high-precision component installation
Mini Power Slide, Maximum Stroke 1/2 in, Cylinder Bore Diameter 1/2 in, Maximum Payload 0.3 lb, Series MPS, Thrust Force @ 100 psi 15 lbf, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.1 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
