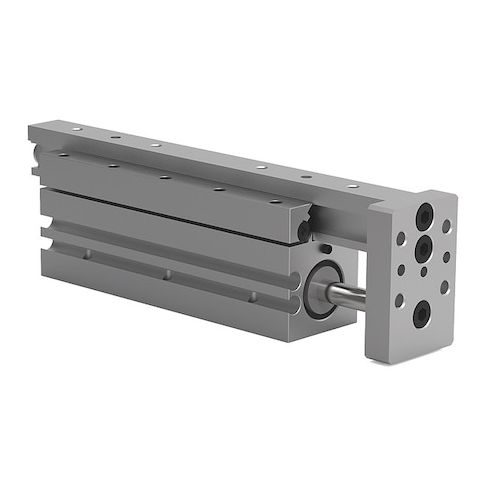

Mini Power Slide, 2In Stroke MPN:MPS-1-4
Mini Power Slide, 2In Stroke
The De-Sta-Co Mini Power Slide is a compact and reliable linear actuator designed for a wide range of applications. With a maximum stroke of 2 inches and a payload capacity of 1.3 pounds, this slide is ideal for use in precision machinery, medical devices, and laboratory equipment. Its high accuracy and repeatability of +/-0.01 inches ensure consistent performance, while its fast actuation time of 0.14 seconds enables rapid movement and positioning. Suitable for operating temperatures from -30 to 180 degrees F, this slide is a versatile solution for industries requiring precise and reliable motion control.
Top product features:
- Has a maximum stroke of 2 inches
- Provides a thrust force of 15 lbf at 100 psi
- Accurate to +/0.0001 inches
Top product applications:
- Material removal and surface finishing
- Automotive assembly and testing
- Medical device assembly and testing
Mini Power Slide, Maximum Stroke 2 in, Cylinder Bore Diameter 1/2 in, Maximum Payload 1.3 lb, Series MPS, Thrust Force @ 100 psi 15 lbf, Size 1 M, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 20 psi, Seal Material Buna-N, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F, Accuracy +/-0.0001 in, Repeatability +/-0.01 in, Maximum Actuation Time 0.14 sec, System of Measurement Inch
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on January 31, 2026 9:16am UTC
Category: Hand Tools
