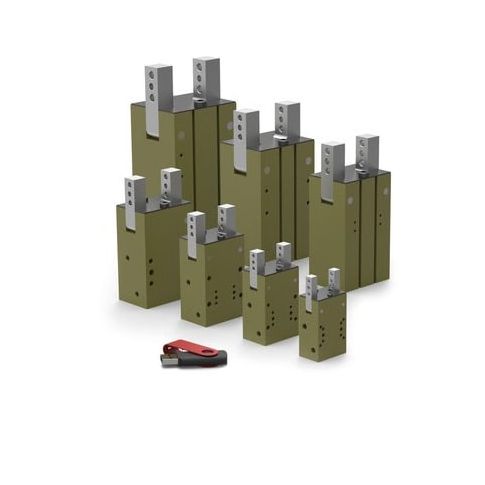

Angular Gripper, 180 Deg, Spring Closed MPN:CT-50M-RE
Angular Gripper, 180 Deg, Spring Closed
The De-Sta-Co Angular Gripper is a versatile and reliable solution for various industrial applications. With a 180-degree rotation and spring-closed design, it provides precise control and secure gripping. Suitable for use in environments with temperatures ranging from -35°C to 80°C, this gripper is ideal for manufacturing, assembly, and packaging processes. Its compact size and adjustable stroke make it easy to integrate into existing systems, while its IP43 rating ensures durability in harsh conditions. Perfect for applications such as robotic assembly, material handling, and machine automation, the Angular Gripper offers efficient and reliable performance.
Top product features:
- 180-degree angular motion
- Spring-loaded to close automatically
- Rotates 90 degrees
Top product applications:
- Assembly of automotive parts
- Material handling in manufacturing facilities
- Packaging and palletizing operations
Angular Gripper,180 Deg, Spring Closed, Series CT, Open Width 180 mm, Total Stroke 180 Degrees , Maximum Operating Pressure 7 bar, Minimum Operating Pressure 4 bar, Overall Length 76 mm, Overall Width 76 mm, Overall Height 201 mm, Maximum Operating Temperature 80 Degrees C, Stroke Adjustment Increment 90 Degrees , IP Rating IP43, Gripper Rotation 90 Degrees , Minimum Operating Temperature -35 Degrees C, Inlet Size 1/8 in, Air Inlet Type G, Weight 2.21 kg, System of Measurement Metric
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 42 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.00
Product info last updated on February 4, 2026 2:02am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
